PRODUCT

PON

EPON ONU GPON ONU XPON ONU EPON OLT GPON OLT WIRELESS ROUTER

XPON ONT P4（1GE+CATV）

P4 supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream. Along with a 10/100/1000Mbps ...

Current position：HOME > PON

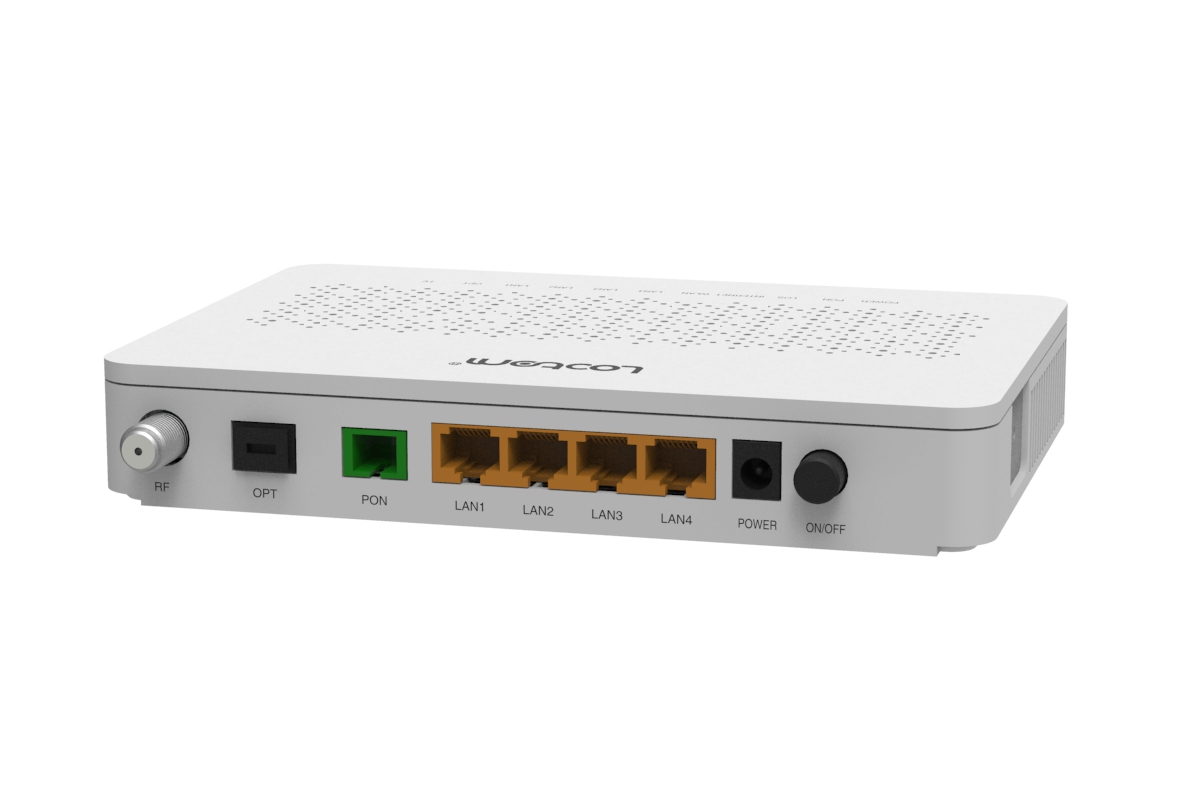

XPON ONT P4（1GE+CATV）

Overview    P4 supports maximum data rates of up to 2.488Gbps downstream and 1.244Gbps upstream. Along with a 10/100/1000Mbps, providing users with good QOS guarantee and flexible bandwidth allocation. Ethernet business and IP integrated services. Integrated CATV function, providing users with more efficient data transmission guarantee.
   P4 has high reliability and provides quality of service guarantee, easy management, flexible expansion and networking. It’s fully meet the ITU-T G984.x and IEEE802.3ah technical standards and has good compatibility with third party manufacturers OLT. Features         ● Dual mode (Can access EPON/GPON OLTs).
        ● Plug and play, integrate auto detection, auto configuration and auto firmware upgrading.
        ● Support downstream 2.5Gbps and upstream to 1.25Gbps with transmission distance to 20Km(GPON mode).
        ● Fiber access and gigabit port provide incredibly fast transfer speeds..
        ● Supports OMCI (ONT Management Control Interface) and OAM remote management.
        ● Support IPv4/ IPv6 IGMP snooping and MLD snooping. Technical Specifications

General
Protocol Standards	ITU-T G.984.x and IEEE802.3ah
Distance	20Km Max
Data Rates	GPON:Upstream rate 1.244Gbps Downstream rate 2.488Gbps EPON:Upstream rate 1.25Gbps Downstream rate 1.25Gbps
PON TX Power	1~5dBm（1310nm）
PON RX sensitivity	<-28dBm（1490nm）
Power	≤ 4W
CATV
Optical Receive	-15～+2 dBm
AGC range	-12～-2 dBm
Fiber return loss	>14 dB
wave length	1100～1600 nm
Connector	RF
C/N	≥ 45 dB
C/CTB	≥ 62 dB
C/CSO	≥ 61 dB
BW	40~ 1000 MHz
Output level	≤82dBμV
Hardware
Interfaces	1xSC/UPC or 1xSC/APC (optional) 1x 10/100/1000Mbps LAN port 1x RF port
Buttons	Reset Button
Power Supply	DC 12V 0.5A
Dimensions (W x D x H)	1047322mm(lengthwidthheight)
Environment
Operating Temperature	-10°C~50°C
Storage Temperature	-40°C~70°C
Operating Humidity	10%~90%, non-condensing
Storage Humidity	5%~95% non-condensing
Certifications	CE, RoHS
Software
WAN Type	Dynamic IP/Static IP/PPPoE
DHCP	Server, Client, DHCP Client List, Address Reservation
Quality of Service	Bandwidth Control
VLAN	Port-based VLAN GVRP IEEE802.1Q VLAN
Access Control	Local Management Control, Host List, Access Schedule, Rule Management
Route	Support NAT Support PPPOE Support Server Client Support Route
PON Mode	GPON Mode
Management	Access Control Local Management Remote Management
Internet Protocol	IPv4, IPv6
Package Contents
Package Contents	1 x GPON ONT 1 x Quick Installation Guide 1 x Power Adapter
